Fpv Video
Parámetros

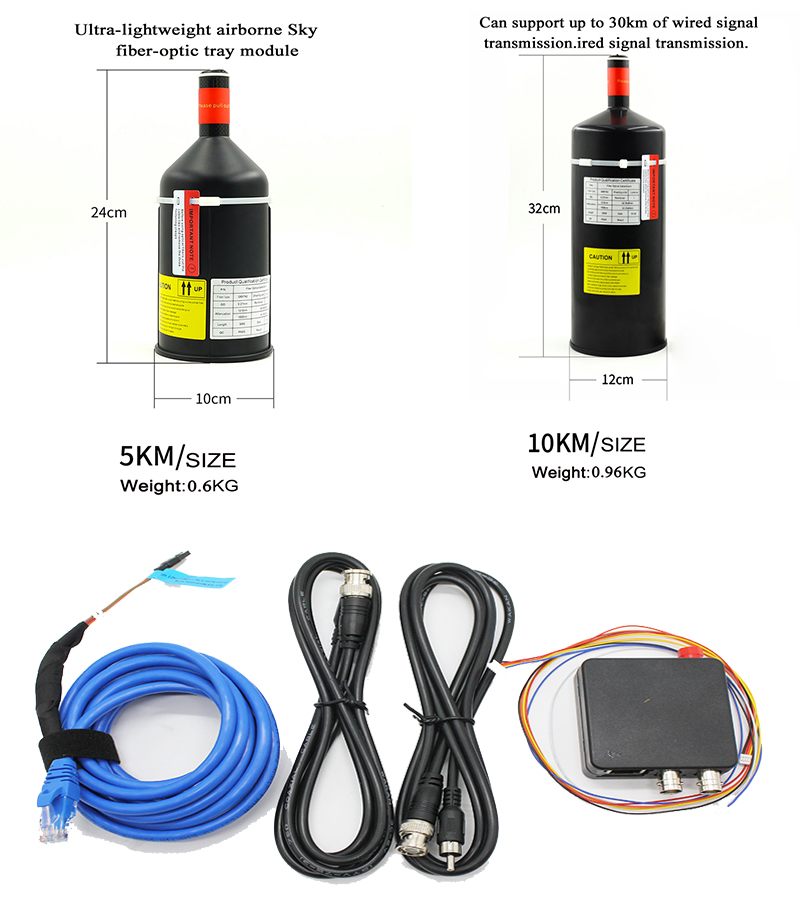

| Product Name | FPV fiber optic bobbin/drone |
| Funtion | Anti-Jamming, High-definition video transmission, uncompressed |
| Case materia | ABS |
| Fiber Interface | FC/SC/ST |
| Fiber OD | 0.27mm ±0.1 |
| Fiber Type | SM G657A2 |
| Fiber Color | Clear |

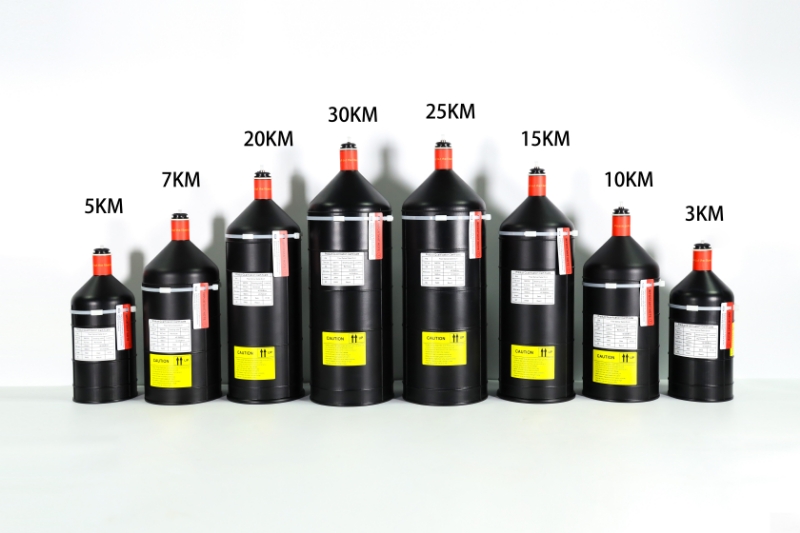

| Fiber Length | 1/2/3/5/10/15/20/25/30/40km Option |
| Wavelength SM | 1310(9/125um)+1550 |
| Attenuation(1310nm) | ≤0.35 dB/km |
| Attenuation(1550nm) | ≤0.25 dB/km |

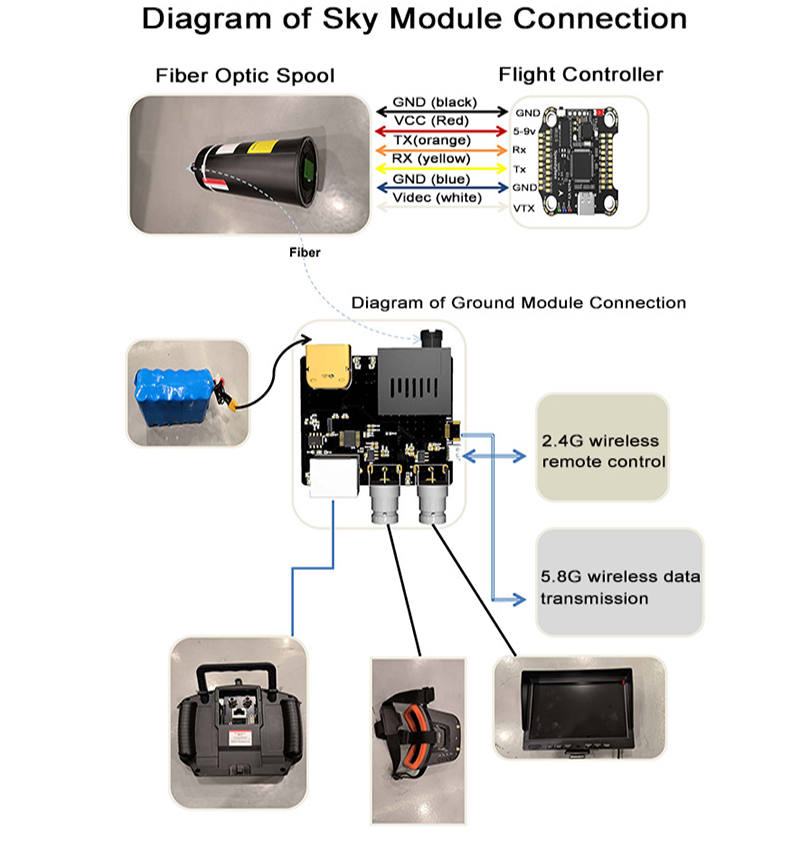

| Data Format | TTL/S.BUS |
| Rate | 0-1MBPS |
| Transmission distance | SM fiber 0-40km |
| Data Direction | Bidrectional |

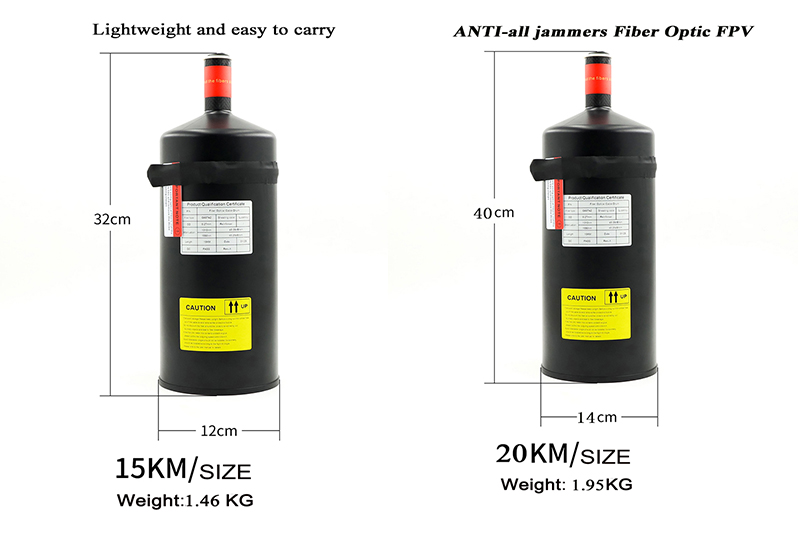

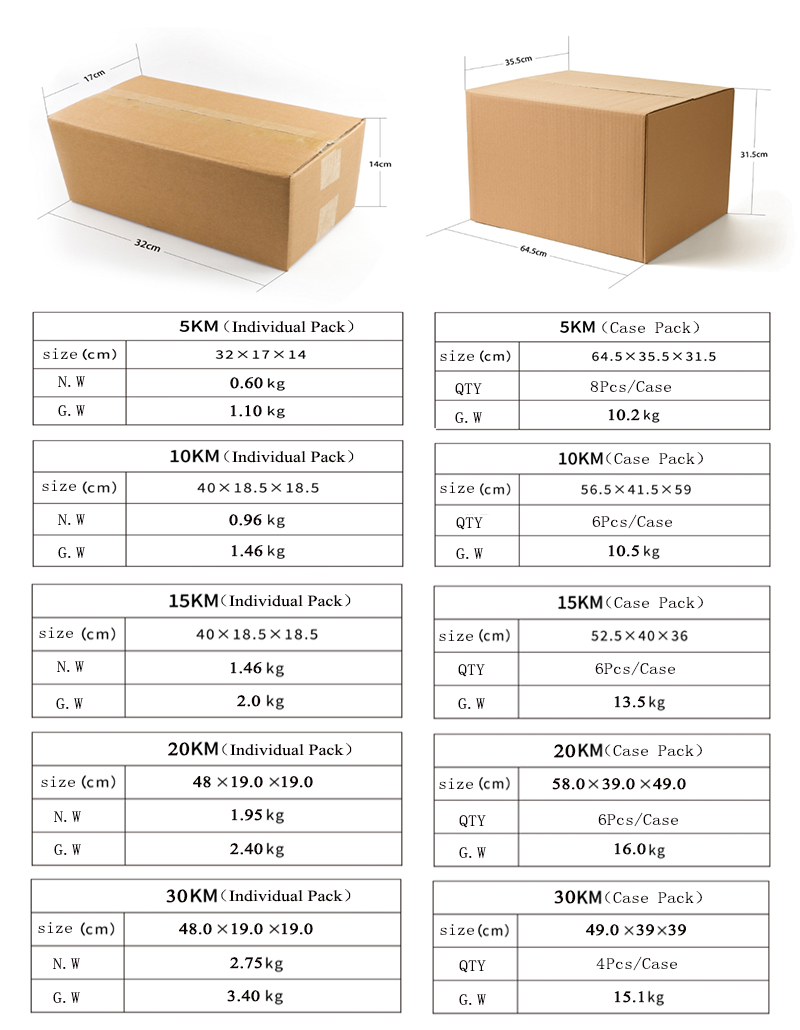

| Weight | 1.1KG(5KM) ,1.46KG(10KM) ,2.0KG(10KM), 2.4KG(20KM),3.4KG(30KM) |
| Working Temp | （-40~+85）℃ |
